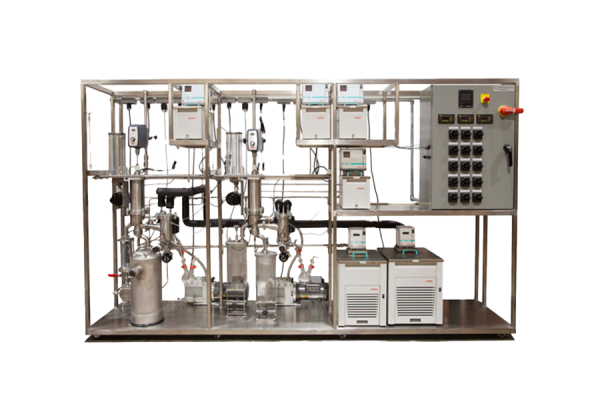

2-Stage KD-10 – Short Path Distillation Unit
Two Stage KDT-10 Short Path Distillation Unit
Short path distillation equipment gets its name from the distance in which the vapor stream is condensed. This allows for very high vacuum and reduced evaporator temperatures. Short path distilling equipment in a plant setting utilizes a continuous process. Chemtech Services uses a roller design within the short path evaporator to create the short path wiped film.
Flow Rate: ~7 L/hr.
Support Frame System
- 304ss Frame
- Dimensions: 167″L 32″W 83″H
Feed System
- Two 25 Liter Hot Oil Heated Feed Tanks
- Two Gear Pump Feed Metering Systems
- Two Heated Evaporator Support Plates
- Hot Oil Traced Transfer Line
Evaporator
- 316 Stainless Steel
- 0.100 Sq. Meter Surface Area
- Estimated Feed Rate 7 Liter/hour*
Circulators
- Feed Circulator 3kw; 0-250°c
- Two Evaporator Circulators 9kw; 20-300°c
- Residue Circulator 3kw; 0-250°c
- Two Condenser Circulators 2kw Heat/500w Cool; -50-200°c
- Cold Trap Circulator 1kw Heat/1000w Cool; -51-200°c
Sample Collection
- Hot Oil Heated Gear Pumps
- Two 1L Cold Trap Receiving Flasks
Vacuum System
- Two Backing Rotary Vane Pumps 40 M3/hour
- Two Turbomolecular Pump 90 L/sec
Control System
- UL 508 Rated Electrical Control Cabinet
- PLC System Optional
Miscellaneous
- Installation and Training Included
- GMP Compliance Documentation Available
