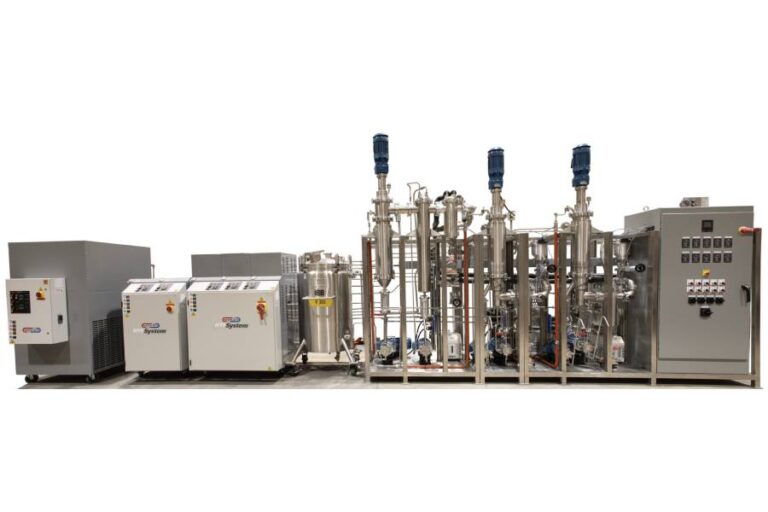

Three Stage KD-30 Short Path Distillation Unit
Short path distillation equipment gets its name from the distance in which the vapor stream is condensed. This allows for very high vacuum and reduced evaporator temperatures. Short path distilling equipment in a plant setting utilizes a continuous process. Chemtech Services uses a roller design within the short path evaporator to create the short path wiped film.
Flow Rate: ~20 L/hr
Support Frame System
- 304ss Frame
- Dimensions: 425″L 54″W 112″H
Feed System
- 200 Liter Hot Oil Heated Feed Tank
- Gear Pump Feed Metering System
- Hot Oil Traced Feed Line
- Hot Oil Traced Transfer Lines
Evaporator
- 316 Stainless Steel
- 0.30 Sq. Meter Surface Area
- Estimated Process Rate 20.00 liter/hour*
Circulators
- Feed Circulator 12kW; 25-250°C
- Three Evaporator Circulators 24kW; 25-250°C
- Residue Circulator 12 kW; 25-250°
- Two Condenser Circulators 6kW Heat/9.6kW Cool; 0-120°C
- Cold Trap Circulator 0.6kW Cool; -75 to -30°C
Sample Collection
- Hot Oil Heated Gear Pumps
- Three 2L Cold Trap Receiving Flasks
Vacuum System
- Three Backing Rotary Vane Pumps 65 M3/hour
- Three Roots Blowers
- Two Turbomolecular Pumps 350 L/sec
Control System
- UL 508 Rated Electrical Control Cabinet
- PLC System Optional
Miscellaneous
- Installation and Training Included
- GMP Compliance Documentation Available
