KD-30 – Short Path Distillation Unit

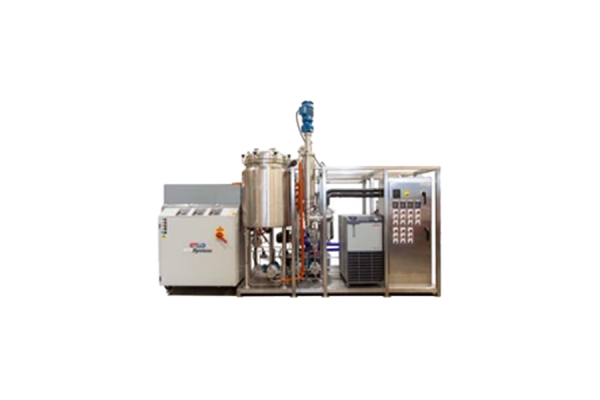

Single Stage KD-30 Short Path Distillation Unit
Short path distillation equipment gets its name from the distance in which the vapor stream is condensed. This allows for very high vacuum and reduced evaporator temperatures. Short path distilling equipment in a plant setting utilizes a continuous process. Chemtech Services uses a roller design within the short path evaporator to create the short path wiped film.
Flow Rate: ~20 L/hr.
Support Frame System
- 304ss Frame
- Dimensions: 165″L 54″W 112″H
Feed System
- 200 Liter Hot Oil Heated Feed Tank
- Gear Pump Feed Metering System
- Hot Oil Traced Feed Line
Evaporator
- 316 Stainless Steel
- 0.30 Sq. Meter Surface Area
- Estimated Process Rate 20.00 liter/hour*
Circulators
- Feed Circulator 12kW; 25-250°C
- Evaporator Circulator 24kW; 25-250°C
- Residue Circulator 12 kW; 25-250°
- Condenser Circulator 6kW Heat/9.6kW Cool; 0-120°C
- Cold Trap Circulator 0.6kW Cool; -75 to -30°C
Sample Collection
- Hot Oil Heated Gear Pumps
- 2L Cold Trap Receiving Flask
Vacuum System
- Backing Rotary Vane Pump 65 M3/hour
- Roots Blower
- Turbomolecular Pump 350 L/sec
Control System
- UL 508 Rated Electrical Control Cabinet
- PLC System Optional
Miscellaneous
- Installation and Training Included
- GMP Compliance Documentation Available
