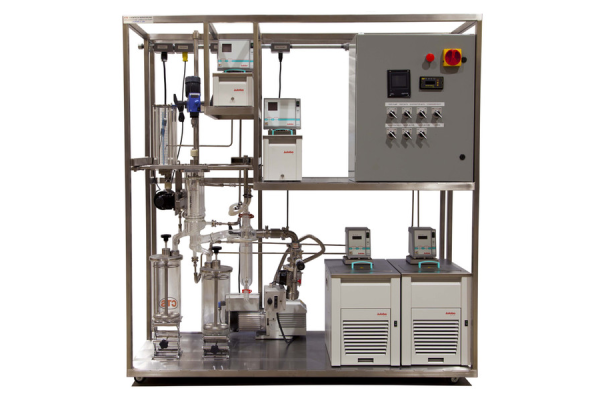

Single Stage KDL-6 Short Path Distillation Unit
Short path distillation equipment gets its name from the distance in which the vapor stream is condensed. This allows for very high vacuum and reduced evaporator temperatures. Short path distilling equipment in a plant setting utilizes a continuous process. Chemtech Services uses a roller design within the short path evaporator to create the short path wiped film.
Flow Rate: ~1.5 L/hr
Support Frame System
- 304ss Frame
- Dimensions: 75″L 28″W 76″H
Feed System
- 2 Liter Hot Oil Heated Feed Tank
- Gear Pump Feed Metering System
- Heated Evaporator Support Plate
Evaporator
- Borosilicated Glass
- 0.060 Sq. Meter Surface Area
- Estimated Process Rate 1.50 liter/hour*
Circulators
- Feed Circulator 2kw; 20-250°c
- Evaporator Circulator 3kw; 0-250°c
- Residue Circulator 2kw; 20-250°c
- Condenser Circulator 2kw Heat/500w Cool; -50-200°c
- Cold Trap Circulator 2kw Heat/500w Cool; -50-200°c
Sample Collection
- 6-Position Carousels
Vacuum System
- Backing Rotary Vane Pump 8 M3/hour
- Turbomolecular Pump 90 L/sec
Control System
- UL 508 Rated Electrical Control Cabinet
- PLC System Optional
Miscellaneous
- Installation and Training Included
- PSI Reviewed
- GMP Compliance Documentation Available
