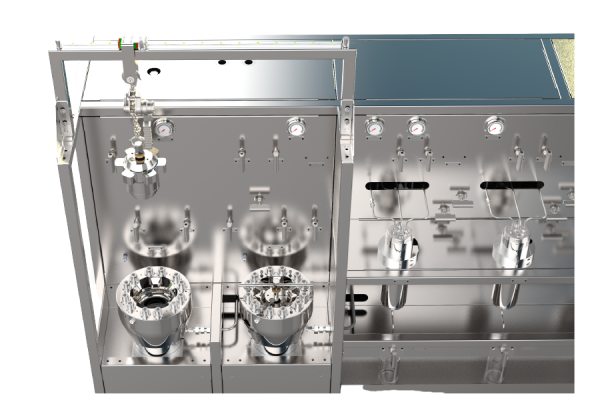

Paralab Supercritical Fluid Extraction (SFE) System

Supercritical Fluid Extraction based on supercritical CO2 is the reference technique for medical cannabis applications. Compared with ethanol extraction, for the same throughput capacity it requires higher capital investment. However, running costs are smaller. In regular operation conditions, the extract contains waxes and lipids that must be removed later by winterization and filtration. However, other components present on ethanol extracts may be avoided if required. There are commercial units available to process from less than one kg/day of dry plant to several ton/day.

Fully Automatic

  • Software FDA 21
  • CFR part 11 compliant and EudraLex volume IV annex 11 compliant

Advanced Clean in Place (CIP)

  • Fast cleaning with cosolvent
  • Depp CIP with caustic and acid solutions

Easy closure of the Extraction Vessel based on a bayonet system.

Configurations:

Extractor

  • 2 x 5L extractors
  • 2 x 9L extractors

Max operation pressure: 350 bar
Max operation: temperature: 80 ºC



Talk to us to find out more about Paralab Supercritical Fluid Extraction (SFE) System
