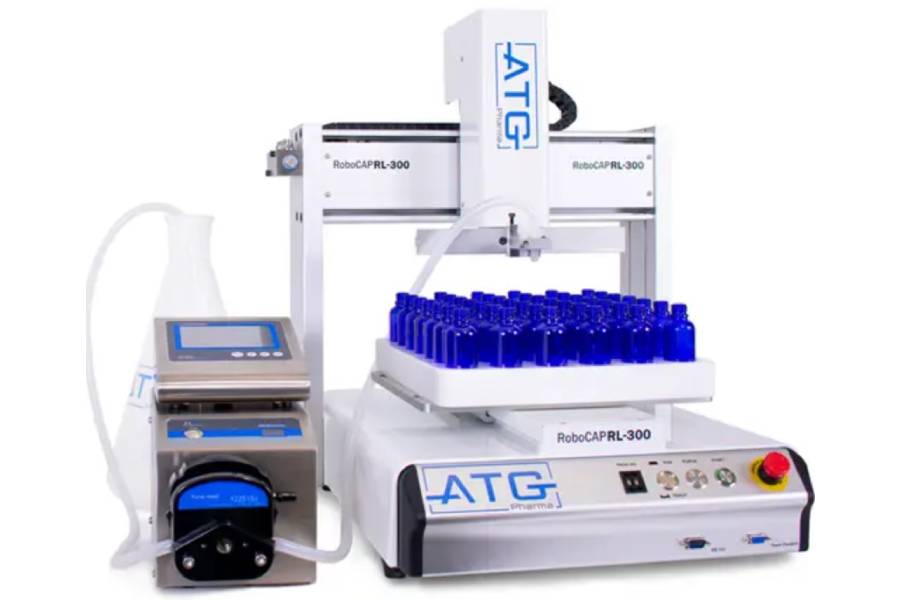

RoboCAP RL-300 Bottle Filling Machine
Bottle Filling Machine
Output Per Hour 1,200 – 3,000
Bottle filling has never been easier with the RoboCAP RL-300 Peristaltic System. This pressure-less filling system fills your product with minimal product contact, making product change over rapid and cleaning easy. Upgrade to 4 nozzles and pump system for higher production outputs with the broadest range of fill volume potential (15ml – 9,999ml)
Bottle Filling Machine Components
Peristaltic Pump
This peristaltic system uses a positive displacement pump to squeeze the silicon product tubing and drawing product through the dispensing nozzles.
The contactless pumping action allows for quick and easy cleaning – simply change the tubing and you’re done.
Nozzle Tip Options
A choice of nozzle tips between 1mm and 2mm allows your production to have a completely customized solution that is ideal for your product.
Both nozzle tips are used with the dispensing needle valves, with the 1mm nozzle tip best used for capsule filling and the 2mm tip best suits gummy filling or larger volume fills such as cream containers, small bottles, etc.

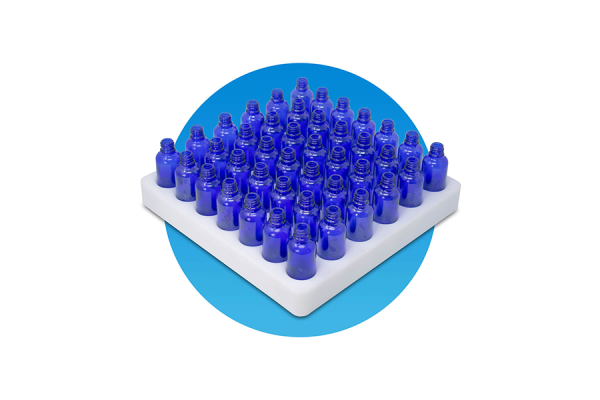

Custom Trays
Custom molded trays specific to your own product are created in-house for a perfect fit on the RoboCAP. Clients will receive three trays for each size or type of product container, eliminating operators downtime and ensuring production is the most efficient.
Specifications
- Fill Rate (Per Hour)*: 1,200 – 3,000
- Weight (kg): 30
- Width (mm): 485
- Height (mm): 590
- Depth (mm): 500
- Power Supply: AC 110 – 220V 300W
- Dispense Accuracy: +/- 2.5%
- Dispensable Volume Range: 10ml – 1L
*Based on 30 ml Bottle
